Drum screening machine Komptech Cribus 3800
No longer available
Specifications
| Manufacturer | Komptech |
| Model | Cribus 3800 |
| Year | 2014 |
| Condition | Used |
| Stock Number | 9784 |
| operating hours | 8500 |
| Connected load | 30 kW |
| connected load | 30 kW |

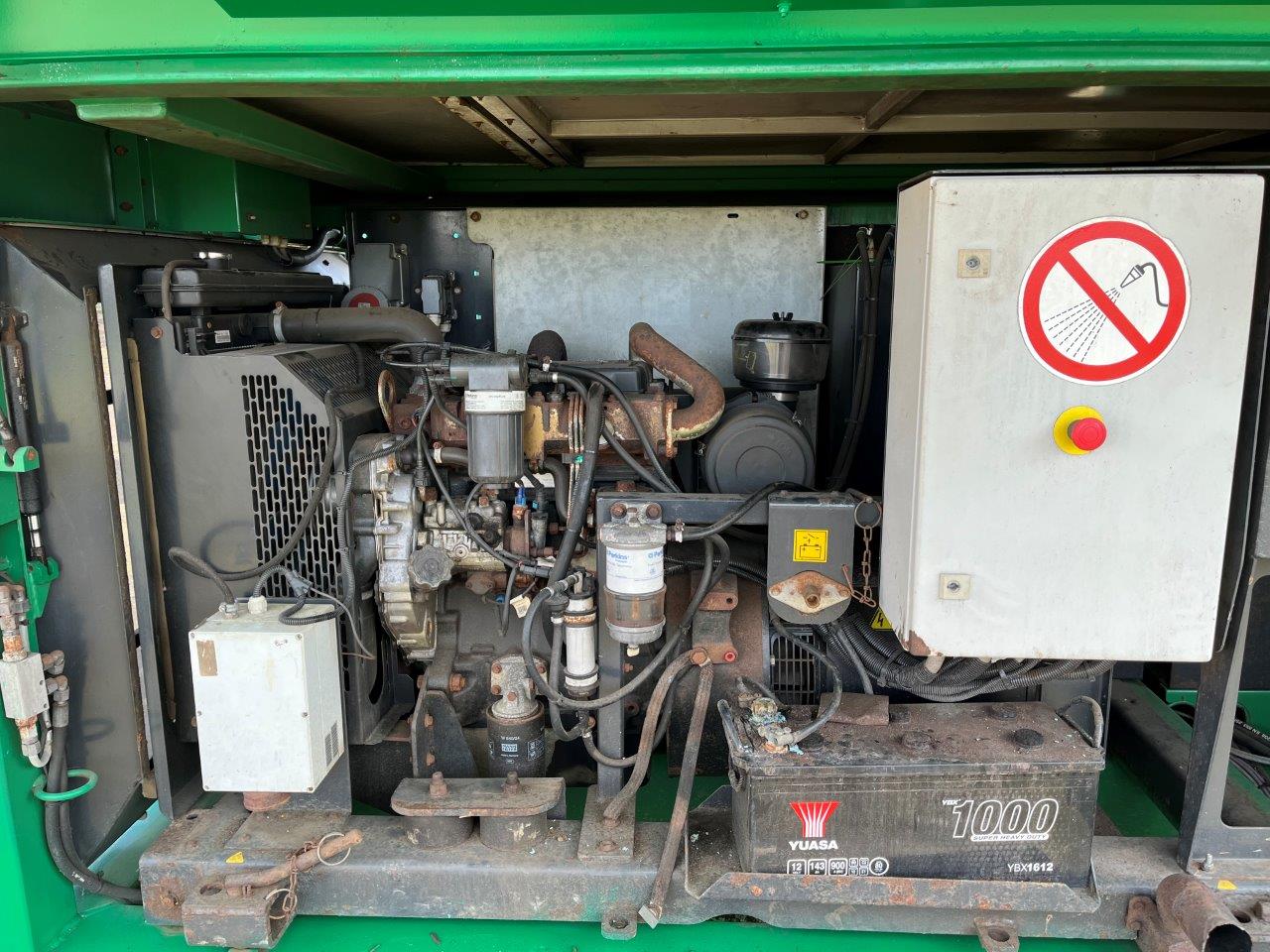

| Diesel generator | 48 kVA |
| Screen drum length | 6000 mm |
| screening drum length | 6000 mm |
| Sieve drum diameter | 2200 mm |
| screening drum diameter | 2200 mm |
| screen hole | 25 mm |
| revolutions per minute | 20 |
| Throughput | up to 220 cbm/h (depending on material) |
| throughput | up to 220 cbm/h (depending on the material) |
| Transport dimensions | 12000 x 2550 x 4000 mm (LxWxH) |
| transport dimension | 12000 x 2550 x 4000 mm (LxWxH) |
| mass | 18000 kg |
| Material task | Bunker volume 5 cubic meters |
| material feed | Bunker volume 5 cbm |
| Task length | 4000 mm |
| task length | 4000 mm |
| Task width | 1675 mm |
| feeding width | 1675 mm |
| Material discharge | Discharge height: coarse fraction 3500 mm / fine fraction 3350 mm |
| material discharge | Discharge height: coarse fraction 3500 mm / fine fraction 3350 mm |
Shipping details
| Width | 2550 mm |
| Height | 4000 mm |
| Length | 12000 mm |
| Weight | 18000 kg |
Description

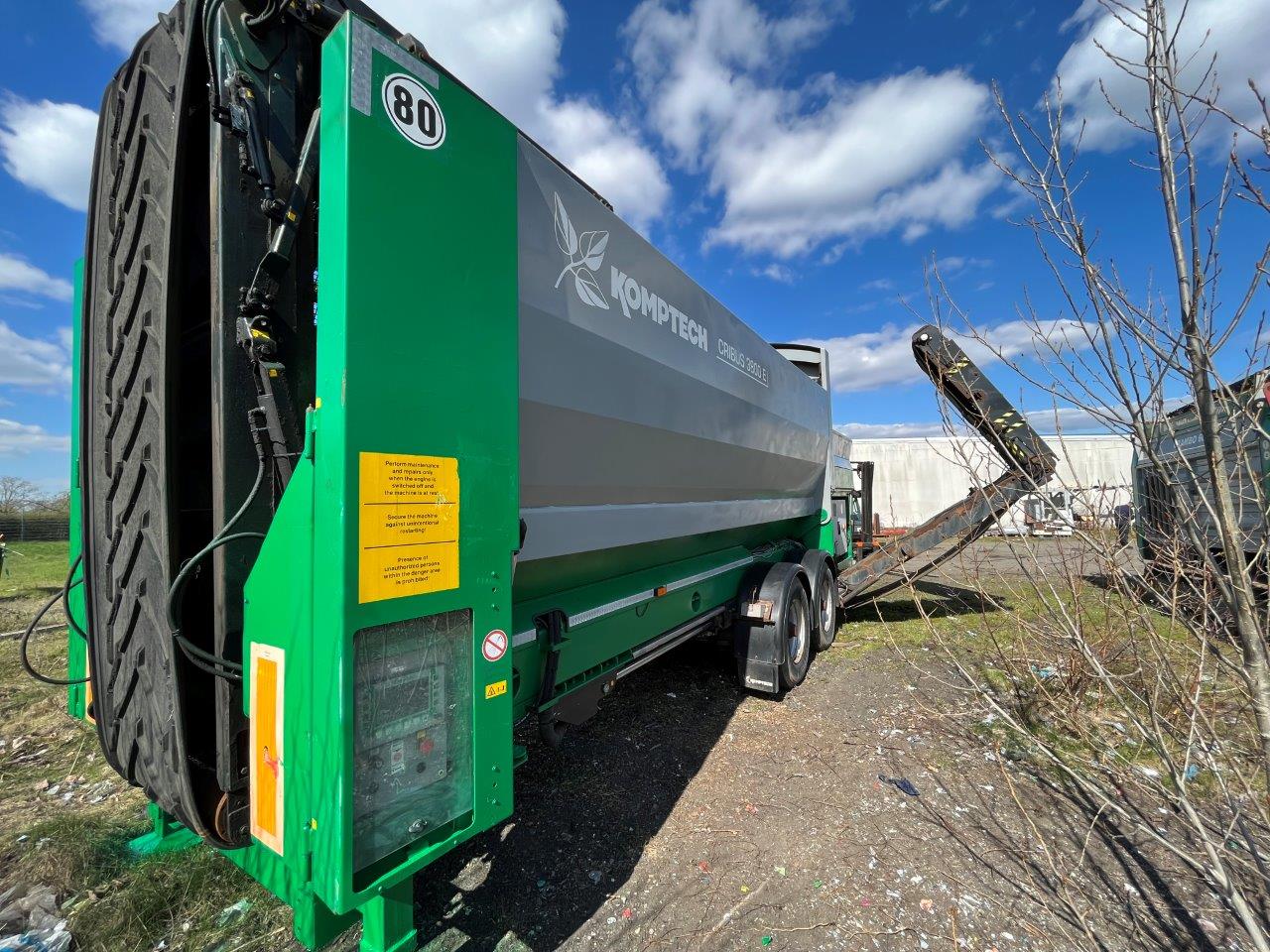

MOBILE DRUM SCREEN MACHINE KOMPTECH CRIBUS 3800, YEAR OF CONSTRUCTION 2014
